① Quick Answer

Commercial construction sites require two-way radios built with a certified IP67 dust-and-waterproof rating (surviving 1-meter submersion for 30 minutes), MIL-STD-810G/H drop-tested polycarbonate housings rated for 1.8-meter concrete impacts, minimum 5W–10W RF output power, and a ≥3000 mAh Li-ion battery pack sustaining 14+ hours of active 5-5-90 duty cycle operation. For construction fleets of 20 to 100+ units, procuring directly from an OEM manufacturer with factory pre-programmed frequencies eliminates field channel-mapping errors and accelerates job-site deployment time by over 60%.

② Key Takeaways

IP67 Submersion & Dust Ingress Protection:

● Complete sealed protection against micro-silica concrete dust (IP6X) and pressurized washdowns or temporary water immersion up to 1 meter for 30 minutes (IPX7).

MIL-STD-810G Shock & Drop Durability:

● Dual-injection molded polymer chassis engineered to withstand repetitive 1.8-meter (6-foot) drops onto rebar and cured concrete slabs.

VOX Hands-Free Voice Activation:

● Critical safety compliance for crane operators, scaffolding teams, and heavy excavator drivers who cannot remove hands from controls.

UHF vs. VHF & Licensing Compliance:

● 400–470 MHz UHF commercial channels deliver superior penetration through reinforced steel and pre-cast concrete structures under FCC Part 90 or CE RED commercial frameworks.

QYT Factory-Direct Fleet Advantage:

● QYT rugged heavy-duty radios feature high-capacity 3000+ mAh battery cells, anti-howling noise-reduction acoustics, turnkey OEM logo/housing customization, complimentary factory pre-programming, full international export documentation (CE, FCC, RoHS, MSDS), a 1-year transceiver warranty, and lifetime English engineering support.

③ Core Technical Buying Guide (PAA Search Intent)

What IP Rating Do Walkie Talkies Need for Outdoor Construction Use?

Construction jobsites present an unforgiving mix of airborne Portland cement dust, slurry splatter, torrential rain, and end-of-shift power washdowns. The IEC 60529 Standard classifies equipment ingress protection via a two-digit metric: the first digit measures solid particle exclusion (0–6), and the second measures liquid barrier integrity (0–8).

IP54 (Splash-Proof / Dust-Protected):

● Common in residential light carpentry or indoor warehousing. It permits partial dust ingress and only defends against water spray from any direction. In active excavation or concrete pouring, slurry dust infiltrates the PTT switch cavity and speaker cone, causing diaphragm seizure within 60 to 90 days.

IP67 (Dust-Tight & Submersible — Industrial Baseline):

● The non-negotiable benchmark for general civil engineering, roadworks, and commercial building sites. The "6" indicates total vacuum-sealed exclusion of fine crystalline silica particles. The "7" certifies that the transceiver, when assembled with its factory O-ring sealed battery pack and antenna gasket, survives immersion in 1 meter of water for 30 minutes without liquid penetration.

IP68 (Continuous Submersion):

● Recommended for deep marine civil works, tunneling under high hydrostatic pressure, or dredging operations.

Ingress Protection (IEC 60529) Decision Matrix for Construction Sites

Beyond ingress protection, genuine site survival hinges on MIL-STD-810G/H Method 516.6 (Shock & Drop) compliance. Radios dropped from scaffolding onto packed gravel or steel girders experience decelerative G-forces exceeding 40G. Engineering features such as internal aluminum die-cast chassis, reinforced perimeter bumper ribbing, and glass-fiber reinforced polycarbonate shells ensure zero PCB fracture or battery latch dislodgement during daily rough handling.

Do Construction Site Walkie Talkies Require a License?

Fleet procurement managers frequently encounter regulatory friction when deploying radios across multiple commercial zones. Regulatory frameworks divide two-way radios into license-free and licensed commercial tiers:

FRS (Family Radio Service - USA / 462–467 MHz):

1. License-free for personal or casual use, but capped at 0.5W to 2W ERP with permanently fixed antennas. FRS radios lack the RF punch required to penetrate dense rebar, and their open shared channels suffer chronic cross-talk interference from neighboring consumer users.

PMR446 (European Union / 446.0–446.2 MHz):

2. License-free across Europe with a 0.5W ERP ceiling. Suitable for localized residential remodeling, but strictly inadequate for multi-floor high-rise developments due to structural signal attenuation.

GMRS (General Mobile Radio Service - USA):

3. Permits higher transmission power (up to 5W handheld, 50W mobile/base) and repeater access. While GMRS requires a single FCC license per organization or family, commercial project contractors generally prefer dedicated business bands.

Commercial Private Mobile Radio (FCC Part 90 / CE RED Commercial UHF):

4. The premier standard for commercial enterprise construction fleets. Organizations apply for assigned frequency coordination (400–470 MHz) with designated CTCSS/DCS sub-audible privacy codes or DMR digital color codes. This prevents hazardous crane transmission override and guarantees crystal-clear, private command channels.

For commercial contractors seeking turn-key compliance without regulatory hassle, QYT Factory Direct Walkie Talkie Solutions delivers radios custom pre-programmed to your authorized corporate frequency tables before export dispatch.

What Battery Life Is Needed for a Full Construction Shift?

On demanding multi-shift building projects, radio failure mid-shift creates immediate downtime and severe OSHA safety compliance risks. Commercial radio endurance calculations are governed by the 5-5-90 Duty Cycle standard:

5% Transmit Time (TX):

● Operating at maximum power consumption (drawing 1.5A–2.2A at 5W–10W output).

5% Receive Time (RX):

● Audio amplifier driving the 1000mW speaker at peak clarity (drawing 250mA–400mA).

90% Standby Mode (STBY):

● Radio monitoring receiver circuit with power-save active (drawing 35mA–60mA).

For a standard 5W UHF industrial radio:

● A standard consumer 1500 mAh

battery lasts: in mild ambient temperatures. However, operating in cold weather (-10°C to -20°C) reduces electrochemical efficiency by 25%–35%, causing battery cutoff in just 7 to 8 hours.

● A high-capacity 3000 mAh Grade-A Li-ion cell provides over 21.9 hours of theoretical runtime, guaranteeing a safe, buffer-protected 14- to 16-hour real-world shift endurance even under continuous site chatter and sub-zero operational conditions.

QYT equips its industrial fleet lines with 3000+ mAh safety-board-protected cells featuring multi-tier overcharge, over-discharge, short-circuit, and thermal runaway cutoffs. Multi-unit 6-way rapid charging banks further allow shift managers to hot-swap batteries between day and night crews seamlessly.

How Does VOX Improve Safety on a Construction Site?

According to structural safety data, crane rigging, steel beam guiding, and trench shoring require uncompromised two-handed operator focus. Reaching for a side-mounted Push-to-Talk (PTT) button while maneuvering heavy loads introduces a 1.2 to 1.8-second manual delay—sufficient to cause rigging collisions.

Voice-Operated Exchange (VOX) utilizes acoustic threshold detection circuitry to open the transmission channel automatically when the operator speaks:

Crane and Hoist Coordination:

1. Blind-spot crane operators receive instantaneous adjustments from banksmen without the rigger releasing guide tag lines.

Scaffolding and High-Altitude Rigging:

2. Technicians working at heights clip the rugged radio to their safety harness and communicate via a heavy-duty throat microphone or noise-canceling earpiece with built-in acoustic boom.

OSHA Ambient Noise Protection (>85 dBA Environments):

3. Standard consumer VOX micro-switches trigger falsely from diesel generator rumbling or pneumatic jackhammers. Professional construction radios feature

Multi-Level VOX Sensitivity Calibration (Levels 1–9) combined with digital DSP noise-canceling dual microphones. This ensures only direct near-field vocal articulation trips the transmitter while ambient site din is attenuated by up to 24 dB.

How Many Radios Does a 50-Person Construction Crew Need?

A common procurement pitfall is buying one generic radio model in a single bulk bundle without tiering devices according to on-site roles. A 50-person commercial site requires a structured operational radio hierarchy:

To streamline procurement specifications and tailor channel assignments for your project layout, explore QYT Engineering Consultation & Fleet Services.

④ Professional Procurement Checklist

Use this checklist during technical qualification and vendor verification before issuing a fleet Request for Quotation (RFQ):

Enclosure Protection:

● Certified IP67 waterproof and dust-tight seal (IEC 60529 standard test report verified).

Impact Certification:

● Compliant with MIL-STD-810G/H drop standards (withstands 1.8-meter drops onto concrete).

Battery Capacity:

● high-density Li-ion battery supporting 14+ hours of continuous 5-5-90 shift duty.

Acoustic Clarity:

● Built-in speaker output with hardware/DSP noise-canceling microphone elements.

Hands-Free Capability:

● Multi-level VOX sensitivity settings compatible with heavy-duty boom headsets and throat mics.

Output Power:

● True 5W to 10W RF transmission power on UHF bands (400–470 MHz) for reinforced concrete penetration.

Factory Customization (OEM):

● Free pre-shipment frequency programming, custom CTCSS/DCS code masking, and bespoke corporate logo printing.

Regulatory Compliance:

● Authentic CE (RED), FCC Part 90/95, RoHS, and UN38.3/MSDS battery transport documentation.

Warranty & Support:

● Minimum 1-year transceiver warranty, 6-month battery/accessory warranty, and direct factory technical support.

⑤ Real-World Commercial Case Studies

Case Study 1: Middle East Commercial Mega-Project Contractor

Customer Profile:

● Top-tier civil engineering general contractor managing a $180M commercial high-rise and subterranean parking complex in Dubai, UAE.

Operational Challenge:

● Severe fine desert sand infiltration coupled with 45°C ambient summer temperatures caused previous consumer-grade radios to suffer speaker membrane choking and battery thermal shutdown within four months.

QYT Solution:

● Deployed 200 units of custom-engineered

QYT AH-UV8 IP67 dual-band rugged radios

fitted with 3200 mAh high-temperature-tolerant battery packs, customized frequency presets, and contractor logo laser engraving.

Operational Outcome:

● Zero dust-penetration failures over an 18-month foundation and structural build cycle. Pre-programmed grouping slashed on-site contractor commissioning time by 75%, saving an estimated 120 man-hours during initial site setup.

Case Study 2: Southeast Asia Industrial Infrastructure & Port Expansion

Customer Profile:

● Maritime civil engineering group overseeing breakwater construction and land reclamation in Bangkok and Rayong, Thailand.

Operational Challenge:

● Working across saltwater spray, high humidity, and a 6 km linear operational zone. Off-the-shelf handhelds suffered severe range dropoff and saltwater corrosion around metal charging contacts.

QYT Solution:

● Supplied 50 units of

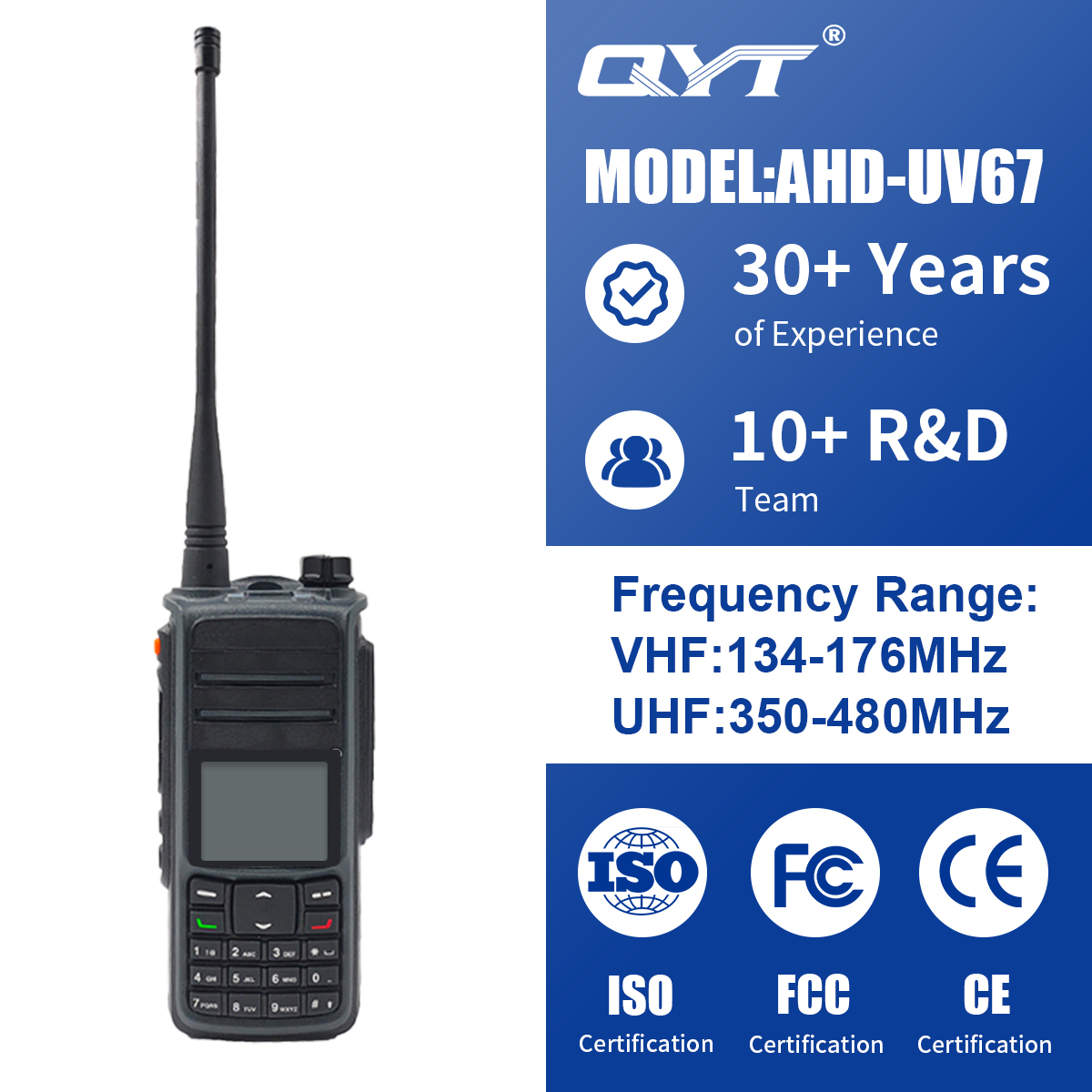

QYT AHD-UV67 IP67 digital/analog dual-mode handhelds

paired with a dedicated 25W central UHF repeater base station and IP67 waterproof remote speaker microphones.

Operational Outcome:

● Delivered 100% dead-zone-free communication between maritime crane barges, shore concrete batching plants, and surveying teams. The sealed IP67 gold-plated terminal connectors eliminated contact oxidation completely.

⑥ Frequently Asked Questions (FAQ)

Q1: What walkie talkie is best for construction sites in 2026?

The best walkie talkies for construction sites combine certified IP67 dust/waterproof ingress protection, MIL-STD-810G drop durability, 5W–10W UHF transmission power, and 3000+ mAh battery capacity. Commercial models like the QYT AH-UV8 and AHD-UV67 deliver structural concrete penetration and shift-long endurance without fragile consumer components.

Q2: Do construction radios need to be IP67 waterproof?

Yes. Construction sites produce fine abrasive silica dust and expose equipment to rainstorms, mud splatter, and high-pressure hose cleanings. An IP67 rating guarantees total dust-tight sealing (IP6X) and survives full 1-meter water immersion for 30 minutes, preventing microphone failure, circuit shorts, and premature equipment replacement.

Q3: What is the best long battery life walkie talkie for shift work?

Industrial radios equipped with genuine 3000+ mAh Li-ion battery packs offer the best endurance, delivering 14 to 20+ hours of runtime under the standard 5-5-90 duty cycle. Units featuring intelligent battery-save circuitry and multi-bay desktop gang chargers allow continuous round-the-clock shift handovers without communication blackouts.

Q4: Can I use a walkie talkie without a license on a construction site?

While license-free FRS or PMR446 radios can be used legally, their low transmission power (0.5W–2W) and congested open channels cause frequent signal dropouts and unsafe cross-talk on commercial sites. Licensed commercial UHF frequencies (FCC Part 90 / CE) are strongly recommended for private, high-power, interference-free crew dispatch.

Q5: How far do walkie talkies reach on large construction sites?

Direct handheld-to-handheld UHF units typically reach 1 to 3 miles (1.5 to 5 km) through dense concrete and structural steel, or 3 to 5 miles across open earthworks. For multi-story high-rise developments or expansive infrastructure spanning over 5 km, integrating a dedicated UHF repeater station extends coverage site-wide without dead spots.
